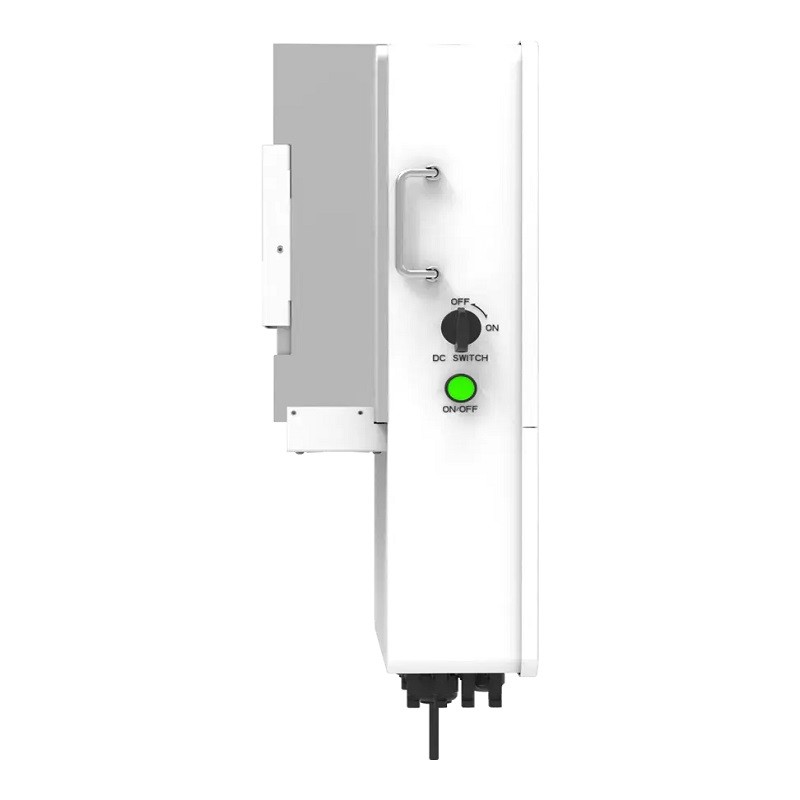

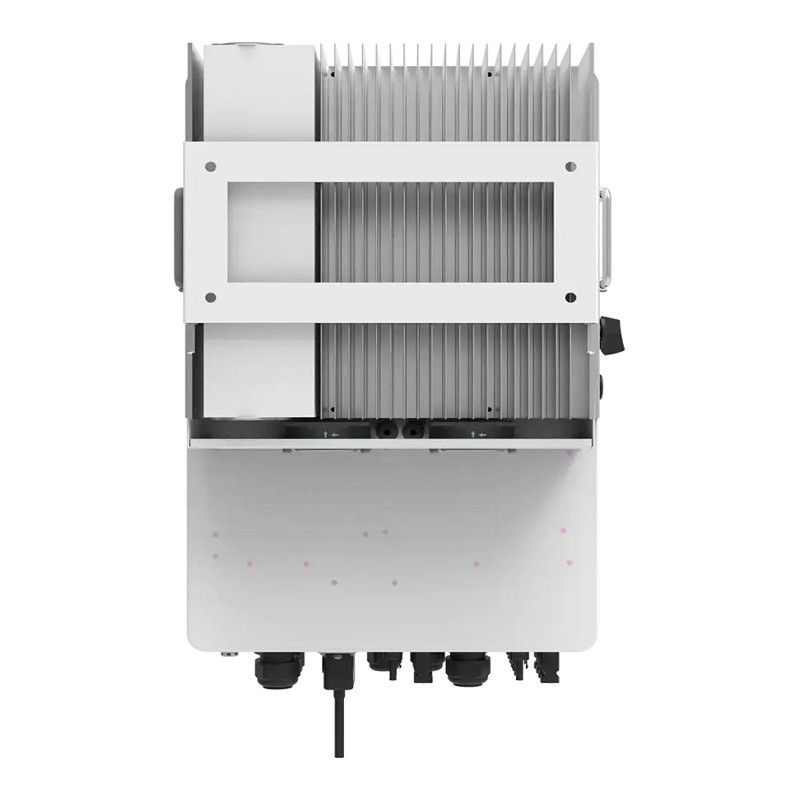

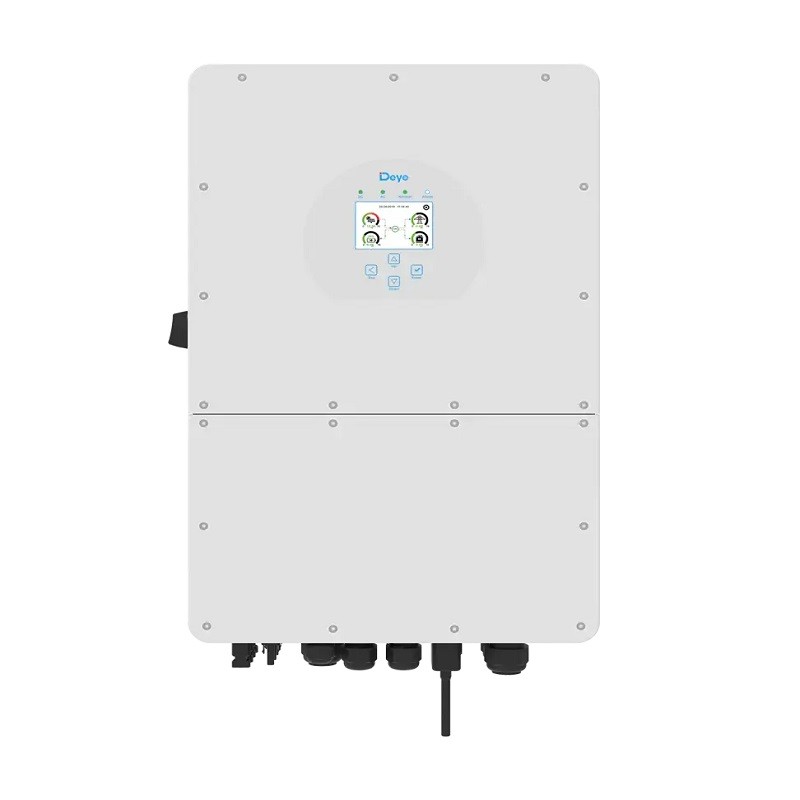

Deye SUN-25K-SG01HP3-EU-BM3 HV 3-Phase Hybrid Off-Grid Inverter

Deye hybrid inverter, SUN-15/20/25K-SG01HP3-EU-AM2,

is a brand new series of three phase hybrid inveter supporting 160-700V HV Battery, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.

Feature highlights:The Deye SUN-15/20/25K-SG01HP3-EU-AM2 hybrid solar inverter supports 160-700V HV lithium-ion batteries, ensuring high system efficiency and reduced heat dissipation. With a compact design, it supports a 1.3 DC/AC ratio, saving on device investment. It features three-phase unbalanced output for extended application scenarios, up to 27500W max AC output power, and operates within -40 to +60℃. Certified with RCM, EN50549, EMC, IEC, NRS097, CE, IEC 62116, SAA, TUV mark, CQC, VDE, and CEI 0-21, these certifications ensure compliance with international safety standards and provide market access assurance.

Supplier highlights:This supplier mainly exports to Jamaica, Uzbekistan, and Germany, offering full customization, design customization, and sample customization services, along with product certification. The positive review rate is 96.0%.

Model	SUN-15K-SG01HP3	SUN-20K-SG01HP3	SUN-25K-SG01HP3
	-EU-AM2	-EU-AM2	-EU-AM2
Battery Input Data
Battery Type	Lithium-ion
Battery Voltage Range (V)	160~700V
Charging/Discharging Current	37A/37A	37A/37A	50A/50A
PV String Input Data
Max. DC Input Power (W)	19500W	26000W	32500W
PV Input Voltage (V)	600V (150V~850V)
Start-up Voltage (V)	180V
PV Input Current (A)	39A+39A
No.of MPPT Trackers	2
No.of Strings Per MPPT Tracke	2+1	2+1	2+2
AC Output Data
Rated AC Output Active Power	15000W	20000W	25000W
Max. AC Output Active Power	16500W	22000W	27500W
AC Output Rated Current (A)	25A	33A	40A
Max. AC Current (A)	30A	45A	41A
Output Frequency and Voltage	50Hz/45-55Hz 60Hz/55-65H 220/380V, 230/400V (three phase)
Certifications and Standards
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140,
	UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety / EMC Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range	-40 to +60℃, >45℃ Derating
Noise (dB)	<55dB
Communication with BMS	RS485; CAN
Weight (kg)	30.5KG
Size (mm)	408W638H237D mm
Protection Degree	IP65
