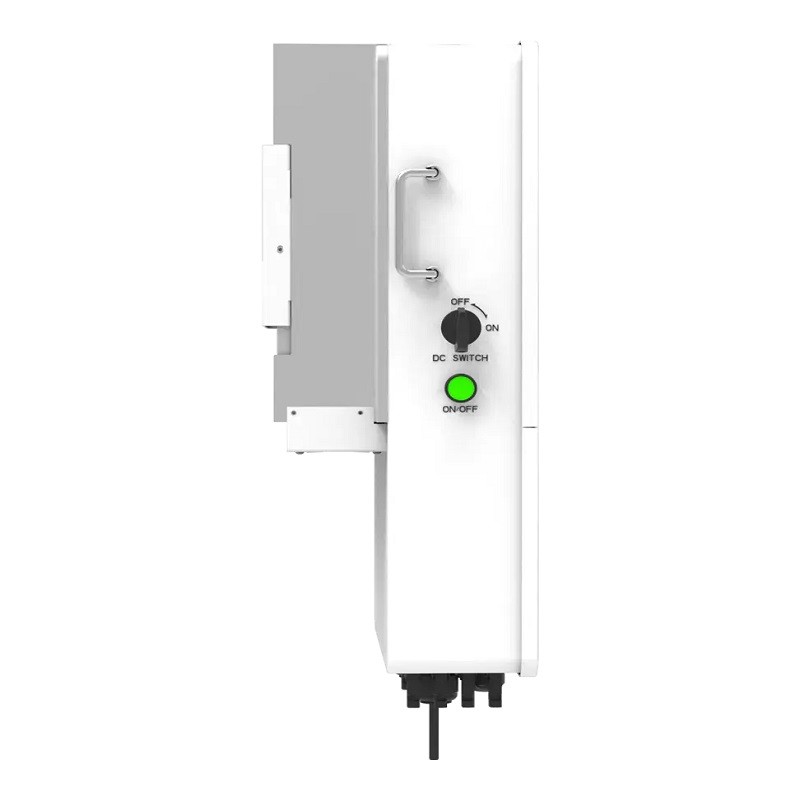

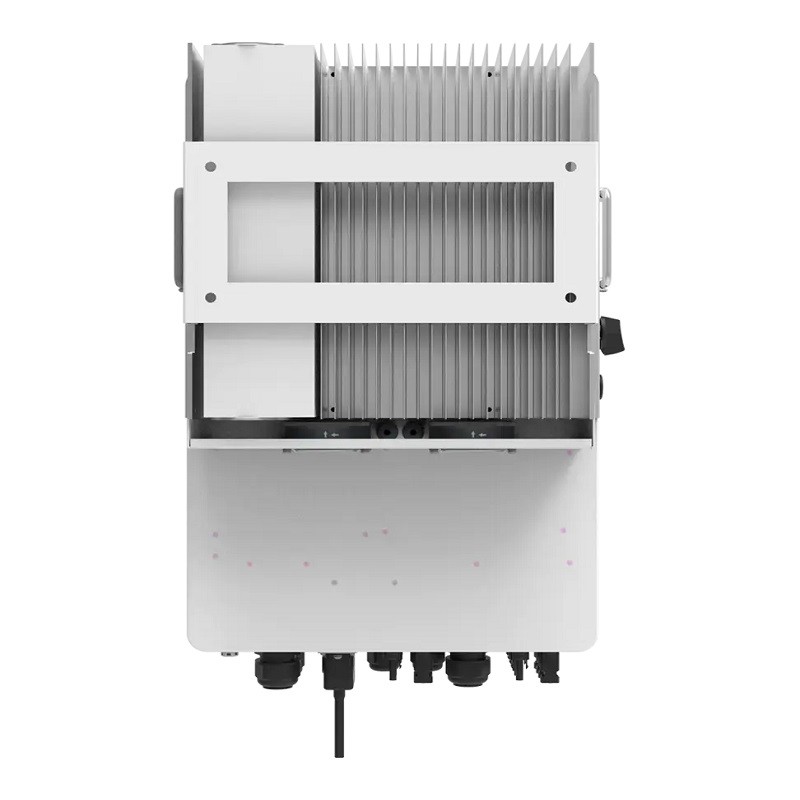

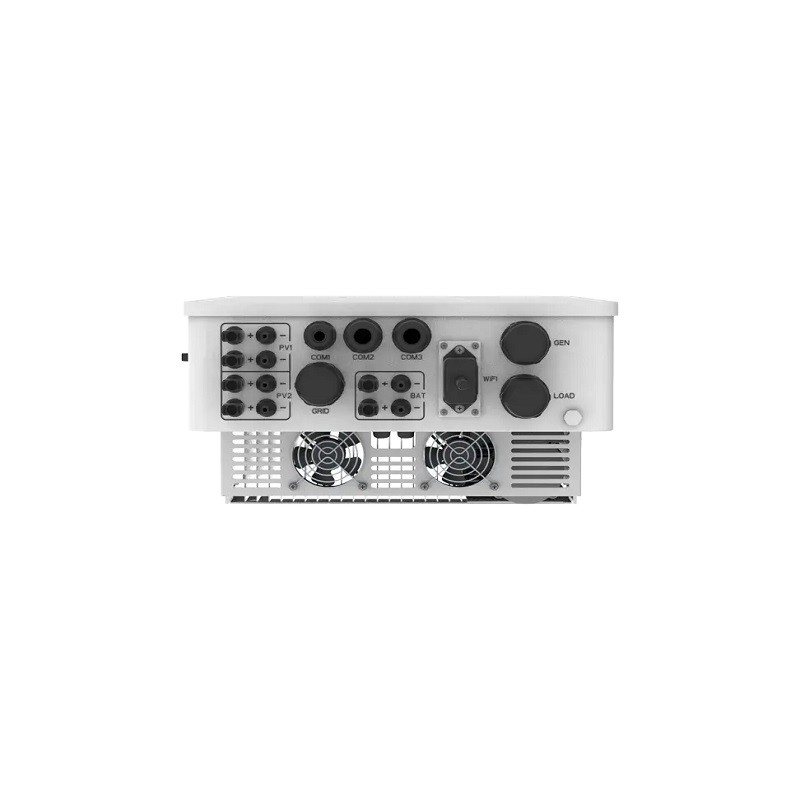

Solar Inverter 3.6KW 5KW 6KW EU

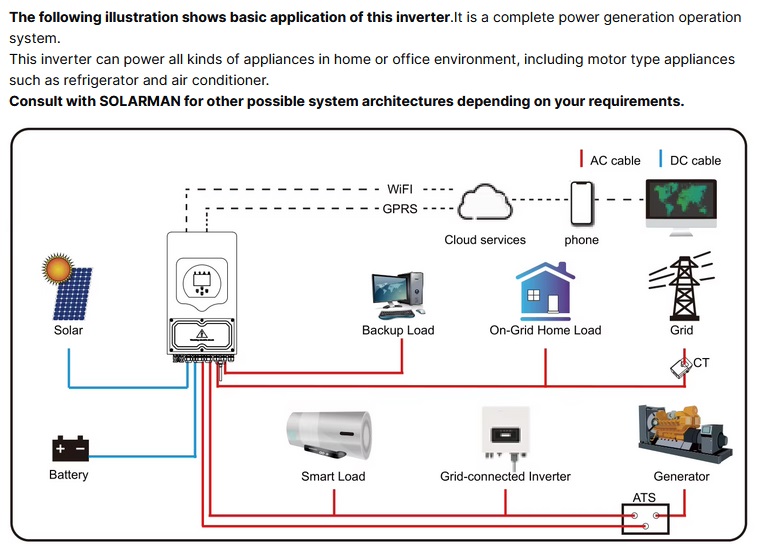

Deye hybrid inverter, SUN-3.6/5/6K-SG03LP1-EU, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN-3.6/5/6K-SG.

Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication

Model	SUN-3K-SG04LP1-24-EU	SUN-3K-SG04LP1-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	20-30V	40-60V
Charging/Discharging Current	140A/140A	70A/70A
PV String Input Data
Max. PV Input Power (W)	3900W	3900W
Max. PV Input Voltage (V)	500V
Start-up Voltage (V)	125V
PV Input Current (A)	13A+13A
No.of MPPT Trackers/ No. of Strings per MPP Tracker	1/1
Rated AC Output Active Power	3000W	3000W
Max. AC Output Active Power	3360W	3300W
Rated Input/Output Voltage/Range (V)	220/230 0.85Un-1.1Un	220/230 0.85Un-1.1Un
Grid Connection Form	L+N+PE	L+N+PE
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65

Certifications and Standards
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety / EMC Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range	-40 to +60℃, >45℃ Derating
Noise (dB)	<30dB
Permissible Altitude	2000m
Weight (kg)	17KG
Size (mm)	330×433×229 (Excluding Connectors and Brackets)
Protection Degree	IP65

Q1: Can I have a sample for testing?
A: Yes, we can support sample . The sample will be charged reasonably according to the negotiation between us.

Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.

Q3: What are the benefits of being a distributor?
A: Special discount Marketing protection.

Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting
or installation process, as well as aftermarket support.

Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.

...
