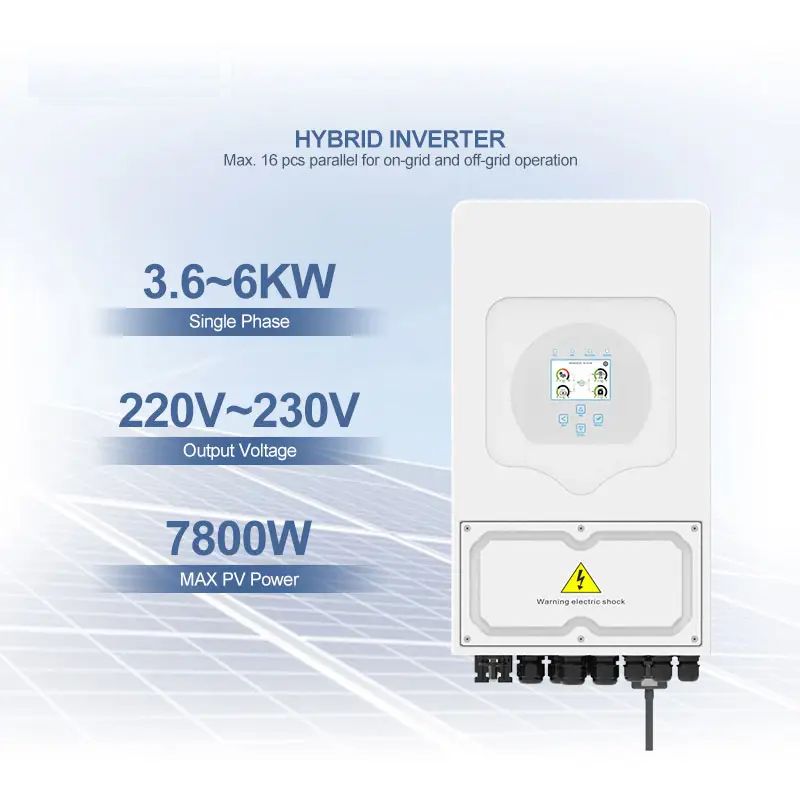

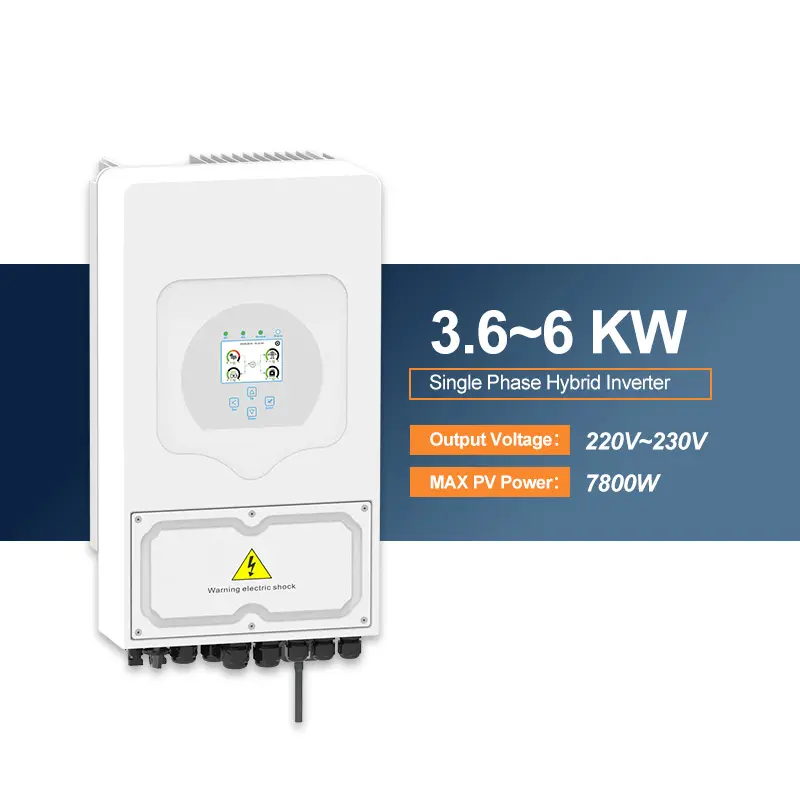

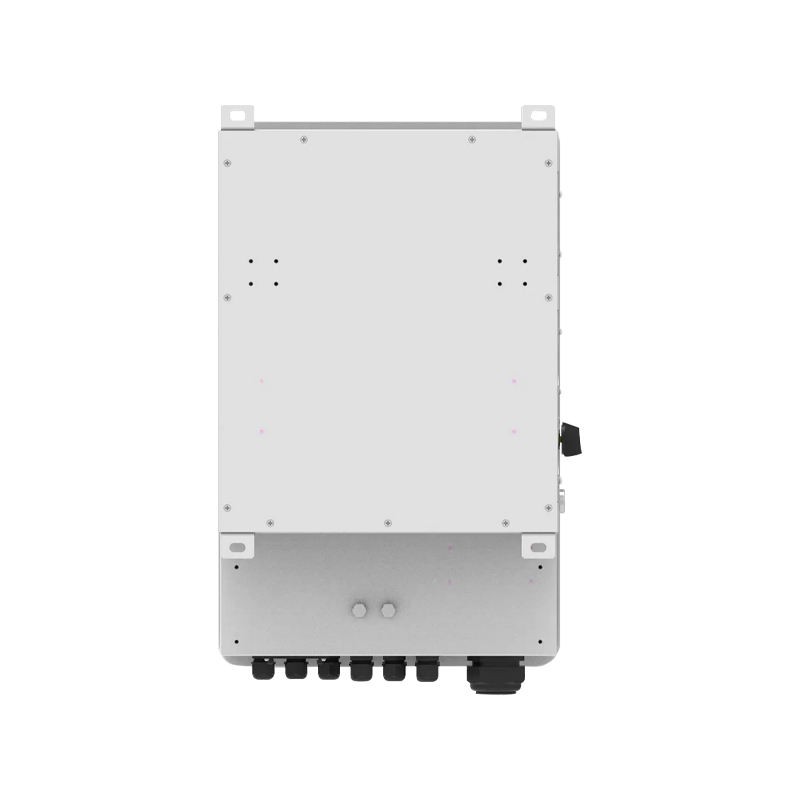

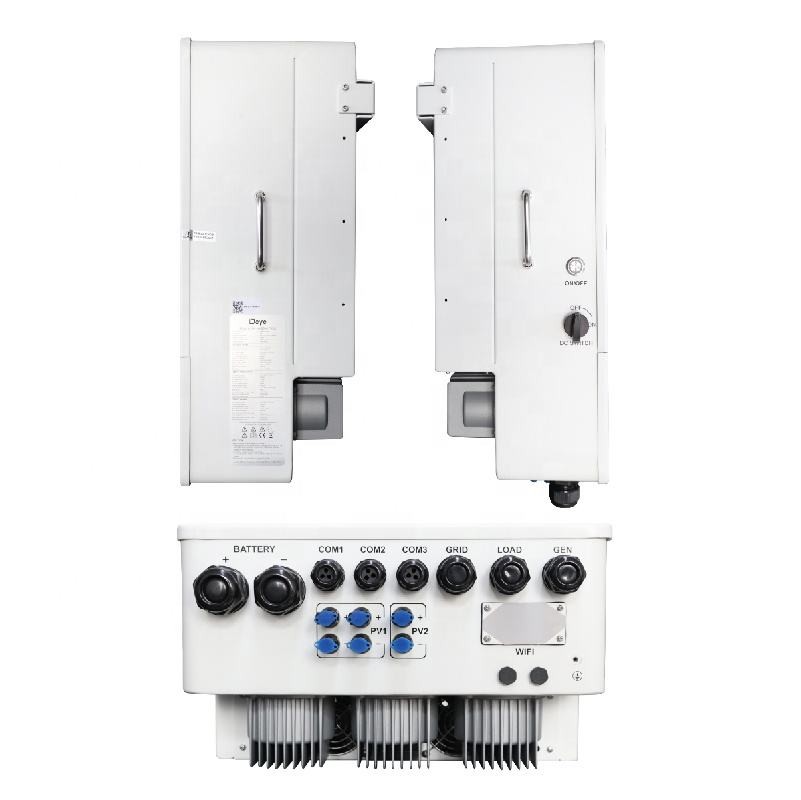

Deye Hybrid Solar Inverter 3.6K-8K

Model	SUN-3.6K-SG03LP1-EU	SUN-5K-SG03LP1-EU(	SUN-6K-SG05LP1-EU	SUN-8K-SG01LP1-EU
AC Output	Single Phase	Single Phase	Single Phase	Single Phase
DC Input(PV Side)
Max DC input Power	4680W	6500W	6500W	10400W
Max DC input Voltage	500V
Start-up Input Voltage	150VDC
Rated Input Voltage	370V(100V~500V)
MPPT Voltage Range	125V-425V
Number of MPPT	2
Max Input Current per MPPT	11A/11A	11A/11A	11A/11A	22A/22A
Battery Parameters
Battery Type	Lithium-ion,Lead-acid
Nominal battery Voltage	48VDC
Battery voltage range	40-60VDC
Maximum Charging Current	90A	90A	120A	190A
Maximum Discharging Current	120A	120A	120A	190A
Charging curve	3 Stages/Equalization
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
AC Output(Grid Side)
Rated AC Output and UPS Power (W)	3600W	5000W	5000W	8000W
Max AC Output Power (W)	3960W	5500W	5500W	8800W
Peak Power(off grid)	2 times of rated power, 10 S
Output Voltage	220/230/240Vac	220/230/240Vac	120/240Vac; 110/220Vac(split phase), 208Vac(2/3 phase), 220/230/240Vac(single phase)
Output Voltage	(single phase)	(single phase)
Grid Type	Split phase ,2/3 phase ,Single Phase
Norminal Frequency	50/60HZ
Grid Frequency Range	47-55/54-66HZ (According to local standard)
AC Output Rated Current(A)	15.7A	21.7A	20.8A	33.4A/35A
Max.AC Current(A)	18A	25A	24A	38.3A/40A
THDI	THD<3%(Linear load<1.5%)
Power Factor	1 default(+/-0.8 adjustable)
EFFICIENCY
Max.Efficiency	97.60%
MPPT Efficiency	99.90%
PROTECTION
PV Input Lightning Protection	Integrated
Anti-islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Output Over Voltage Protection	Integrated
General Data
Operating Temperature Range (ºC)	-25~60ºC, >45ºC Derating
Cooling	fan
Communication with BMS	RS485, CAN
Weight	20.5KG	20.5KG	32KG	32KG
	580×330×208 mm	580×330×208 mm	670×420×233mm	670×420×233mm
Display	LCD Display
Protection Degree	IP65
Grid Regulation	EU Standard; US Standard
