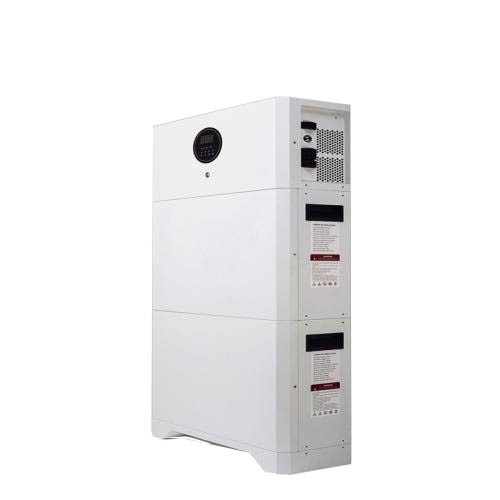

L10 all in one solar energy lithium battery system

L10 all in one solar energy lithium battery system

Product Item:6
Rated Power : 5000W
Rated Voltage : 230VAC
Frequency : 50Hz-60Hz
Length*Width*Height (mm) : 588*196*808mm
Weight (kg) : 58kg
  • Product Detail
  • FAQs

Battery parameters L10regular version L10enhanced version
Rated power (kWh) 10.24 10.24
Rated voltage (V) 51.2 51.2
Discharge voltage range (V) 44.8-57.6 44.8-57.6
Rated charging current (A) 50A @25°C 50A @25°C
Maximum charging current (A) 100A @25°C 100A @25°C
Discharge depth DOD 90% DOD 90%
Communication mode RS485/RS232/CAN RS485/RS232/CAN
Lifespan 5000times 0.5C @25°C 5000times 0.5C @25°C
Operating Temperature Charge 0°C-50°C / Discharge -10°C-+55°C Charge 0°C-50°C / Discharge -10°C-+55°C
Storage Temperature Temperature -15°C ~ +60°C Temperature -15°C ~ +60°C
Cell Material LiFePO4 LiFePO4
Battery Warranty 3years 5years
Inverter Parameters
Rated Power 5000W 5000W
Rated Voltage 230VAC 230VAC
Maximum charging current (A) 100A 100A
Frequency 50Hz-60Hz 50Hz-60Hz
Switching time 20ms 20ms
Waveform simple harmonic vibration simple harmonic vibration
Battery access voltage 40-60V 40-60V
Maximum PV access voltage (open circuit) 500VDC 500VDC
Maximum PV access power 5500W 5500W
MPPT Operating Voltage Range 120-450VDC 120-450VDC
Inverter Warranty Period 1years 2years
Basic parameters
Length*Width*Height (mm) 588*196*1238mm 588*196*1238mm
Weight (kg) 105kg 105kg
WIFI Module not have have
Aerosol Fire Module not have have
