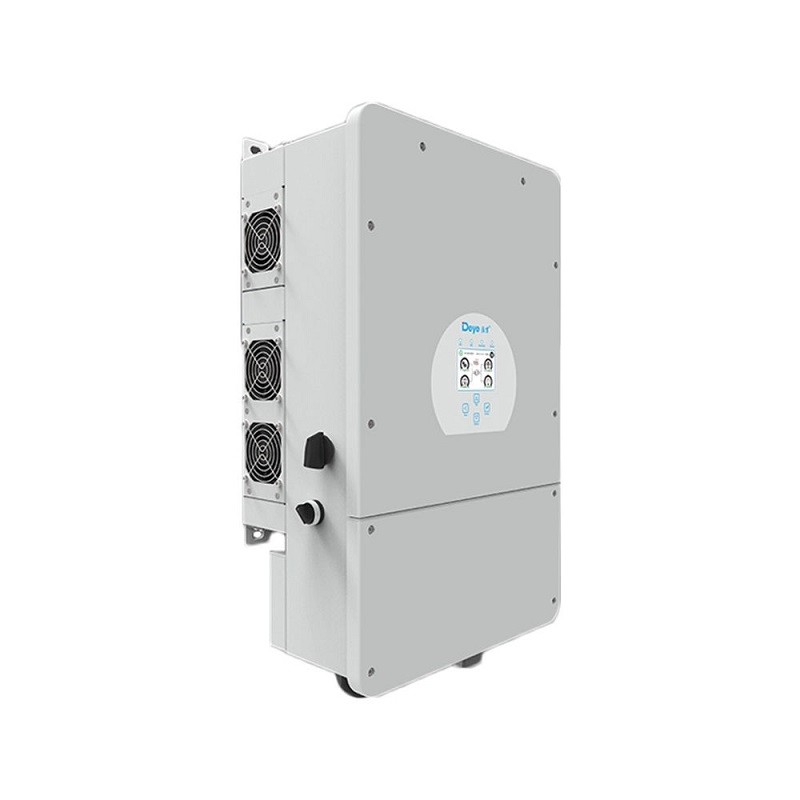

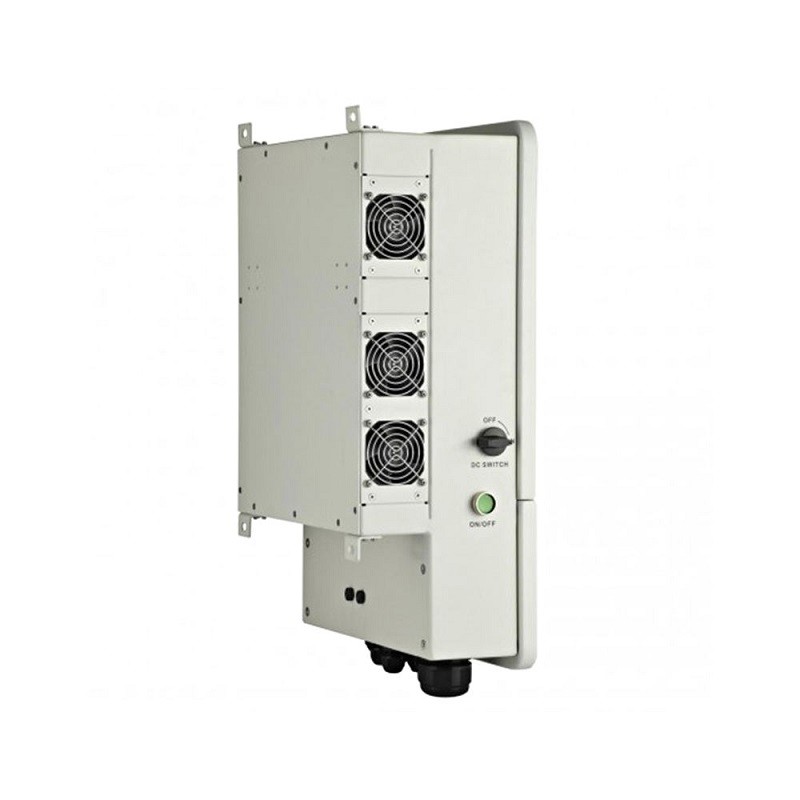

Deye SUN -8K-SG01LP1-EU deye 8kw 10kw 12kw 14kw 16kw deye Hybrid Solar Inverter

Feature highlights:The Deye SUN-8K-SG01LP1-EU hybrid solar inverter is designed for residential and light commercial use, maximizing solar energy self-consumption. It supports PV system electricity generation, battery charging via RS485/CAN communication, and uninterrupted supply during grid blackouts. Certified with IEC, EMC, CE, and EN50549 standards, it ensures compliance with global safety regulations, providing market access and reliability. Equipped with multiple MPPT trackers and a wide operating temperature range, it powers appliances like refrigerators and air conditioners efficiently.

Supplier highlights:This supplier mainly exports to Jamaica, Uzbekistan, and Germany, offering full customization, design customization, and sample customization services, and holds product certifications. The positive review rate is 96.0%.

Model	SUN-8K-SG01LP1-EU	SUN-16K-SG01LP1-EU
Battery Input Data
Battery Type	Lead-acid or Li-lon
Battery Voltage Range (V)	40~60V
Max. Charging Current (A)	190A	290A
Max. Discharging Current (A)	190A	290A
PV String Input Data
Max. DC Input Power (W)	10400W	20800
Rated PV Input Voltage (V)	370V (125V~500V)
Start-up Voltage (V)	150
PV Input Current (A)	26+26	26+26+26
No.of MPPT Trackers	2	3
No.of Strings Per MPPT Tracker	2	2+2+2
AC Output Data
Max. AC Output Power (W)	8800	17600
AC Output Rated Current (A)	35	70
Max. AC Current (A)	38	80
Output Frequency and Voltage	50/60Hz; L/N/PE 220/230Vac (single phase)
Certififications and Standards
Grid Regulation	VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,
Grid Regulation	G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃ )	-40-60℃, >45℃ Derating
Noise (dB)	<30 dB
Communication with BMS	RS485; CAN
Weight (kg)	32	48.5
Size (mm)	420W×670H×233D mm	464W×763H×282D mm
Protection Degree	IP65

Q1: Can I have a sample for testing?
A: Yes, we can support sample . The sample will be charged reasonably according to the negotiation between us.

Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.

Q3: What are the benefits of being a distributor?
A: Special discount Marketing protection.

Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting
or installation process, as well as aftermarket support.

Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.

...
